ELK + 내장 Filebeat

소스 가져오기: git clone https://github.com/deviantony/docker-elk.git



컴포즈로 ELK 셋업: docker compose up setup



Filebeat 를 추가한 Main Compose 파일 만들기

services:



  # Setup service (unchanged)

  setup:

    profiles:

      - setup

    build:

      context: setup/

      args:

        ELASTIC_VERSION: ${ELASTIC_VERSION}

    init: true

    volumes:

      - ./setup/entrypoint.sh:/entrypoint.sh:ro,Z

      - ./setup/lib.sh:/lib.sh:ro,Z

      - ./setup/roles:/roles:ro,Z

    environment:

      ELASTIC_PASSWORD: ${ELASTIC_PASSWORD:-}

      LOGSTASH_INTERNAL_PASSWORD: ${LOGSTASH_INTERNAL_PASSWORD:-}

      KIBANA_SYSTEM_PASSWORD: ${KIBANA_SYSTEM_PASSWORD:-}

      METRICBEAT_INTERNAL_PASSWORD: ${METRICBEAT_INTERNAL_PASSWORD:-}

      FILEBEAT_INTERNAL_PASSWORD: ${FILEBEAT_INTERNAL_PASSWORD:-}

      HEARTBEAT_INTERNAL_PASSWORD: ${HEARTBEAT_INTERNAL_PASSWORD:-}

      MONITORING_INTERNAL_PASSWORD: ${MONITORING_INTERNAL_PASSWORD:-}

      BEATS_SYSTEM_PASSWORD: ${BEATS_SYSTEM_PASSWORD:-}

    networks:

      - elk

    depends_on:

      - elasticsearch



  # Elasticsearch service (unchanged)

  elasticsearch:

    build:

      context: elasticsearch/

      args:

        ELASTIC_VERSION: ${ELASTIC_VERSION}

    volumes:

      - ./elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml:ro,Z

      - elasticsearch:/usr/share/elasticsearch/data:Z

    ports:

      - 9200:9200

      - 9300:9300

    environment:

      node.name: elasticsearch

      ES_JAVA_OPTS: -Xms512m -Xmx512m

      ELASTIC_PASSWORD: ${ELASTIC_PASSWORD:-}

      discovery.type: single-node

    networks:

      - elk

    restart: unless-stopped



  # Logstash service (unchanged)

  logstash:

    build:

      context: logstash/

      args:

        ELASTIC_VERSION: ${ELASTIC_VERSION}

    volumes:

      - ./logstash/config/logstash.yml:/usr/share/logstash/config/logstash.yml:ro,Z

      - ./logstash/pipeline:/usr/share/logstash/pipeline:ro,Z

    ports:

      - 5044:5044

      - 50000:50000/tcp

      - 50000:50000/udp

      - 9600:9600

    environment:

      LS_JAVA_OPTS: -Xms256m -Xmx256m

      LOGSTASH_INTERNAL_PASSWORD: ${LOGSTASH_INTERNAL_PASSWORD:-}

    networks:

      - elk

    depends_on:

      - elasticsearch

    restart: unless-stopped



  # Kibana service (unchanged)

  kibana:

    build:

      context: kibana/

      args:

        ELASTIC_VERSION: ${ELASTIC_VERSION}

    volumes:

      - ./kibana/config/kibana.yml:/usr/share/kibana/config/kibana.yml:ro,Z

    ports:

      - 5601:5601

    environment:

      KIBANA_SYSTEM_PASSWORD: ${KIBANA_SYSTEM_PASSWORD:-}

    networks:

      - elk

    depends_on:

      - elasticsearch

    restart: unless-stopped



  # Filebeat service (newly added)

  filebeat:

    build:

      context: extensions/filebeat/

      args:

        ELASTIC_VERSION: ${ELASTIC_VERSION}

    user: root

    command:

      # Log to stderr.

      - -e

      # Disable config file permissions checks. Allows mounting 'config/filebeat.yml' even if it's not owned by root.

      # See https://www.elastic.co/guide/en/beats/libbeat/current/config-file-permissions.html for details.

      - --strict.perms=false

    volumes:

      # Mount the Filebeat configuration file.

      - ./extensions/filebeat/config/filebeat.yml:/usr/share/filebeat/filebeat.yml:ro,Z



      # Mount Docker container logs for Filebeat to process.

      - type: bind

        source: /var/lib/docker/containers

        target: /var/lib/docker/containers

        read_only: true



      # Mount Docker socket for Filebeat to access container metadata.

      - type: bind

        source: /var/run/docker.sock

        target: /var/run/docker.sock

        read_only: true



      # Mount the logs directory you want Filebeat to monitor. 로그 경로

      - ./logs:/usr/share/filebeat/logs:ro,Z



    environment:

      FILEBEAT_INTERNAL_PASSWORD: ${FILEBEAT_INTERNAL_PASSWORD:-}

      BEATS_SYSTEM_PASSWORD: ${BEATS_SYSTEM_PASSWORD:-}



    networks:

      - elk



    depends_on:

      - elasticsearch



networks:

  elk:

    name: docker-elk_elk

    driver: bridge



volumes:

  elasticsearch:



Filebeat 설정파일에서 Output을 Logstash를 거치도록 하기

filebeat.yml (extensions\filebeat\config)

name: filebeat

filebeat.config:
  modules:
    path: ${path.config}/modules.d/*.yml
    reload.enabled: false

# Define inputs to collect logs from a specific directory
filebeat.inputs:
  - type: log
    enabled: true
    paths:
      - /usr/share/filebeat/logs/*

processors:
  - add_cloud_metadata: ~

# Enable monitoring and specify Elasticsearch hosts for monitoring data
monitoring:
  enabled: true
  elasticsearch:
    hosts: ["http://elasticsearch:9200"] # Replace with your Elasticsearch host and port
    username: "beats_system"            # Use the built-in `beats_system` user
    password: "changeme" # Replace with the actual password for the `beats_system` user

# Send logs to Logstash instead of Elasticsearch
output.logstash:
  hosts: ["logstash:5044"] # Replace "logstash" with the service name or IP of your Logstash container

http:
  enabled: true
  host: 0.0.0.0



Logstash 관련 파싱 설정 추가하기

logstash.conf (logstash\pipeline)

input {
  beats {
    port => 5044
    host => "0.0.0.0"
  }
}

filter {
  grok {
    match => {
      "message" => '%{IP:remote_addr} - - \[%{HTTPDATE:time_local}\] "%{WORD:http_method} %{DATA:request} HTTP/%{NUMBER:http_version}" %{NUMBER:status:int} %{NUMBER:bytes:int} %{NUMBER:request_time:float} "(?:%{URI:http_referer}|-)" %{NUMBER:session_id:int} "(?:%{DATA:http_user_agent}|-)" "-"'
    }
  }

  date {
    match => [ "time_local", "dd/MMM/yyyy:HH:mm:ss Z" ]
    timezone => "Asia/Seoul" # Adjust for KST timezone
    target => "@timestamp"
  }

  mutate {
    remove_field => [ "host", "time_local" ] # Remove unnecessary fields if desired
  }
}

output {
  elasticsearch {
    hosts => ["http://elasticsearch:9200"]
    user => "elastic" # Correct syntax using =>
    password => "changeme" # Replace with your actual password
    index => "was-access-log-%{+YYYY.MM.dd}" # Custom index name for WAS logs
    codec => json
  }
  stdout {
    codec => rubydebug
  }
}





filter {
  grok {
    match => {
      "message" => '%{IP:remote_addr} - - \[%{HTTPDATE:time_local}\] "%{WORD:http_method} %{DATA:request} HTTP/%{NUMBER:http_version}" %{NUMBER:status:int} %{NUMBER:bytes:int} %{NUMBER:request_time:float} "(?:%{URI:http_referer}|-)" %{NUMBER:session_id:int} "(?:%{DATA:http_user_agent}|-)" "-"'
    }
  }

이 부분은 여기서 확인해볼 수 있다.

https://grokdebugger.com/

Grok Debugger | Autocomplete and Live Match Highlghting

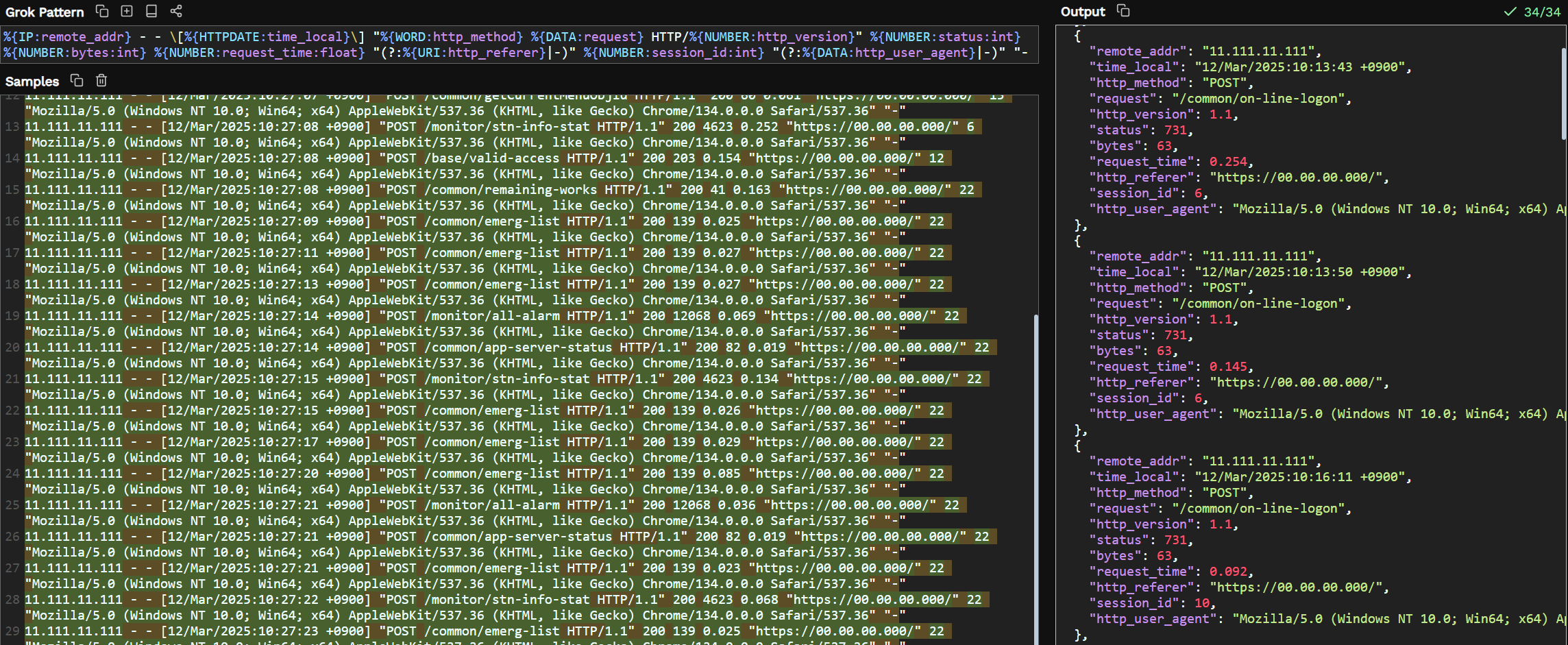

Pattern에 파싱하고 싶은 패턴, Sample에 로그 넣으면 실시간으로 파싱되어 우측같이 나온다.



컴포즈 실행: docker compose up -d



비트 암호 초기화: docker compose exec elasticsearch bin/elasticsearch-reset-password --batch --user beats_system

바뀐 암호로 filebeat.yml (extensions\filebeat\config) 여기 수정



키바나 접속

http://localhost:5601

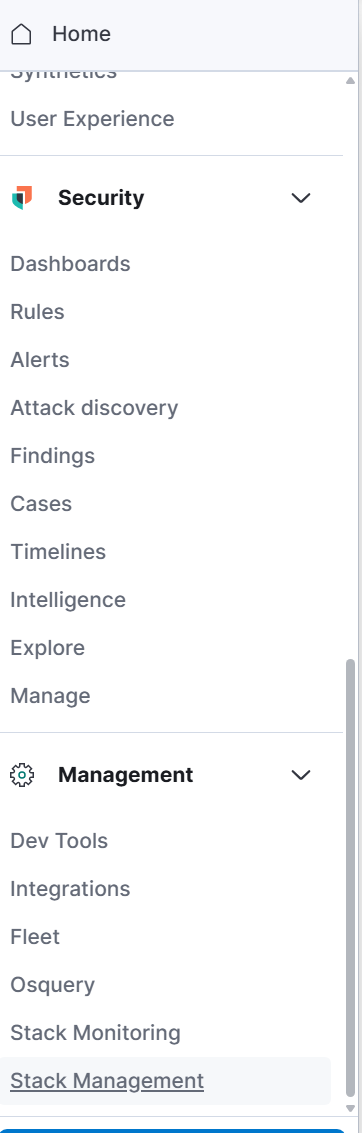

Management > Stack Management

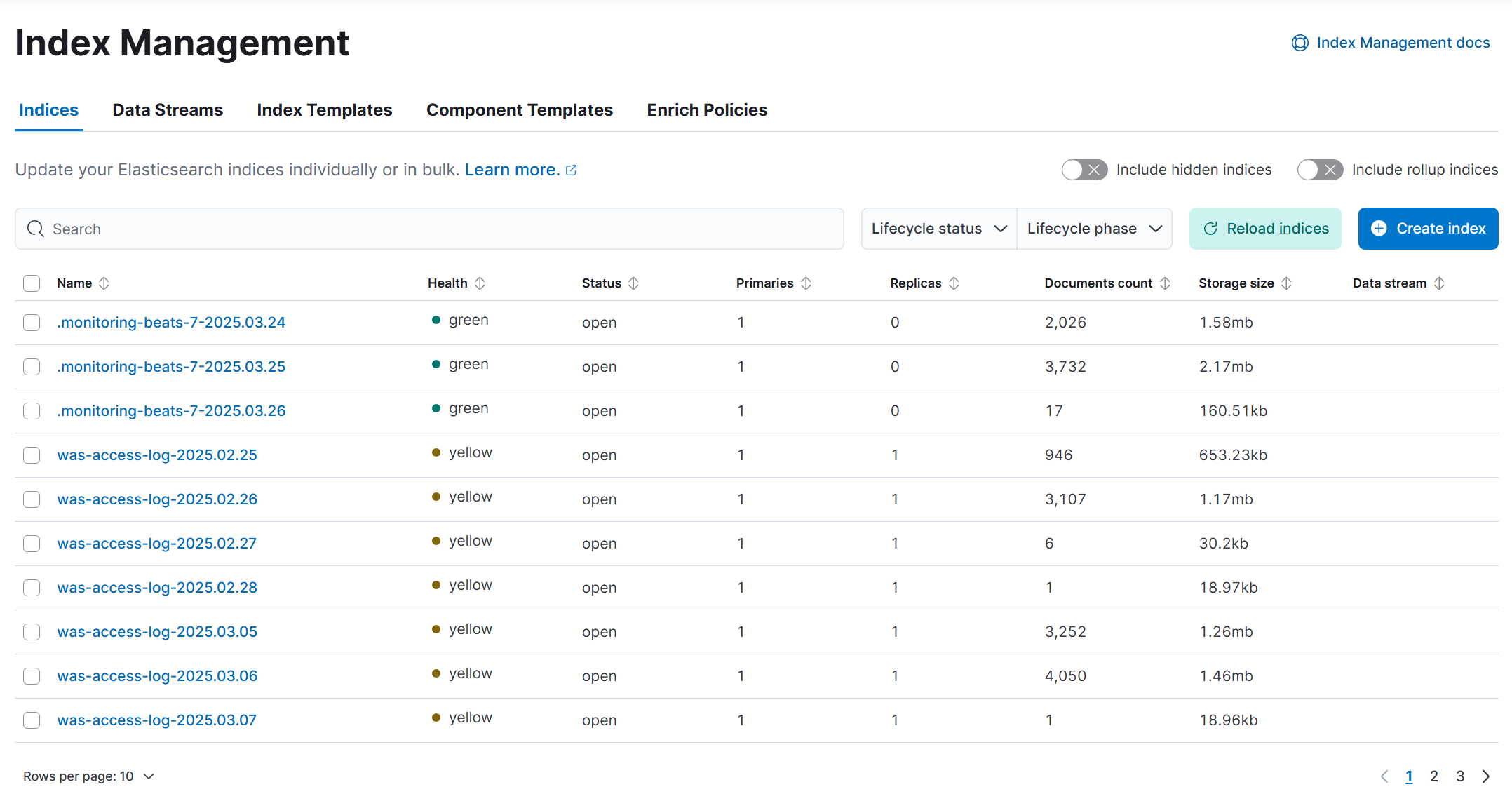

Data > Index Management 에서

*마운트한 로그가 잘 들어갔는지 확인. 만약 안보인다면 Reload indices

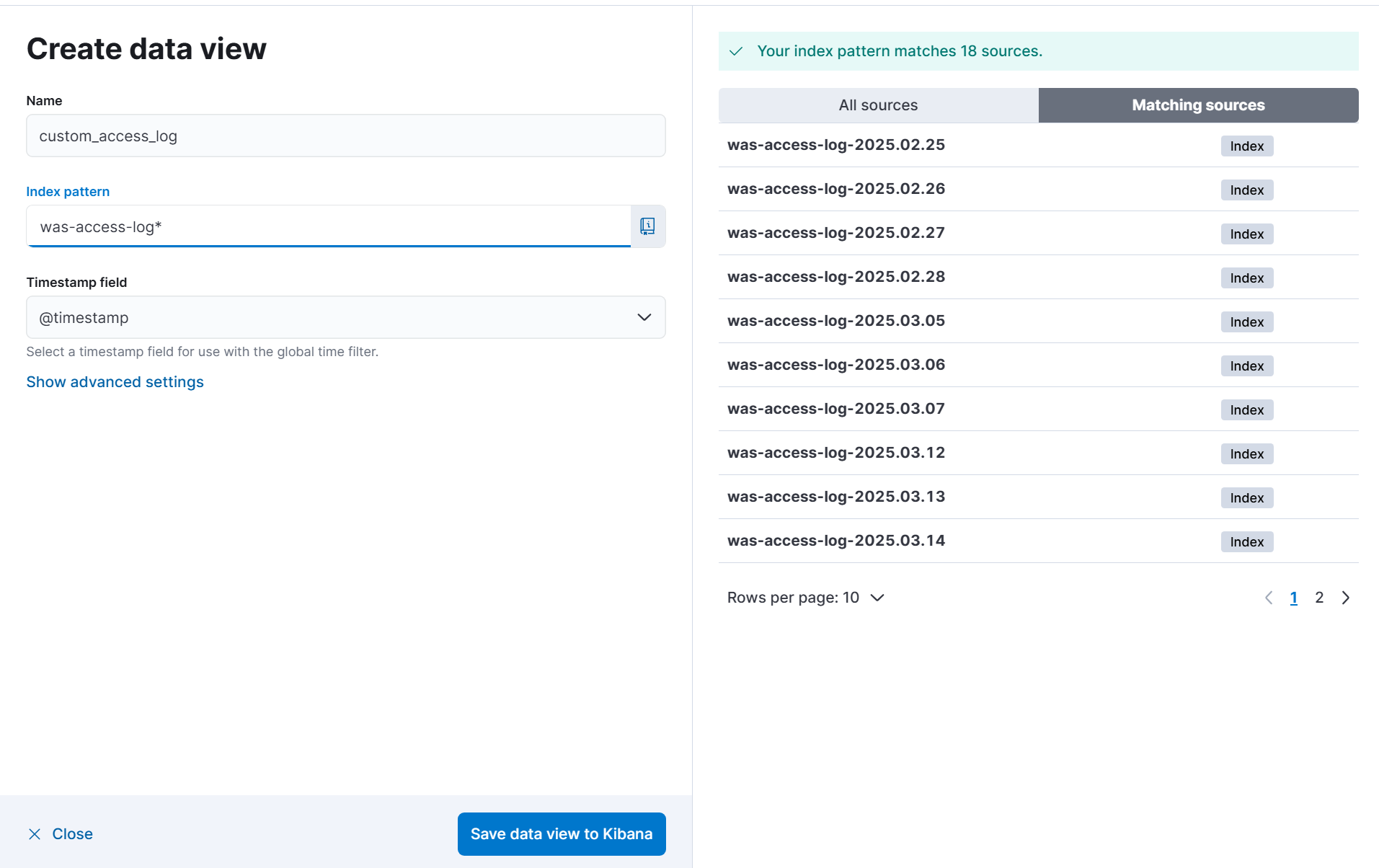

Kibana > Data Views > Create data view

데이터뷰 생성할 때 마운트 한 로그의 포맷에 맞춰서 Index pattern 입력. 매칭이 된다면 우측에 표시된다.

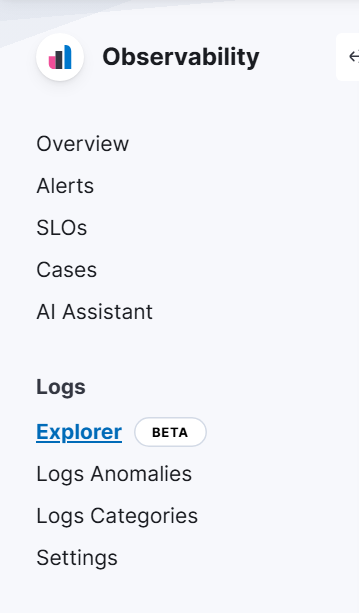

Logs > Explorer

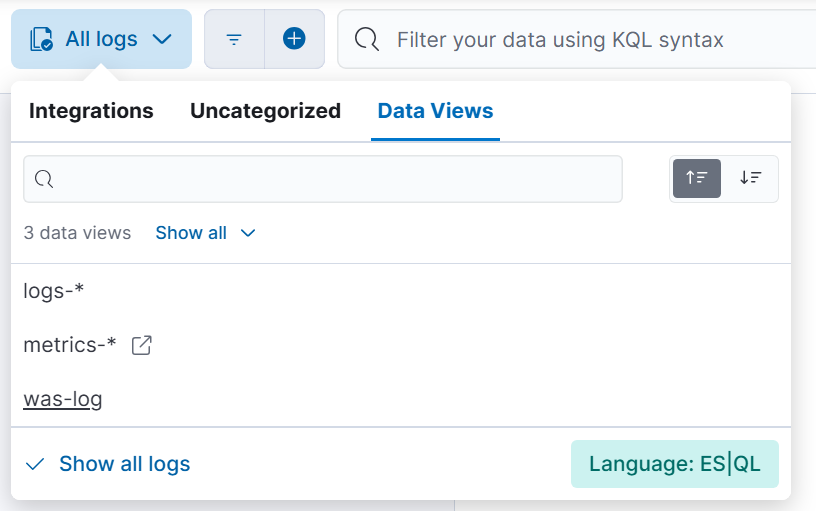

All logs 대신 Data Views에서 아까 Custom으로 만든 데이터 뷰 선택 (ex: was-log)

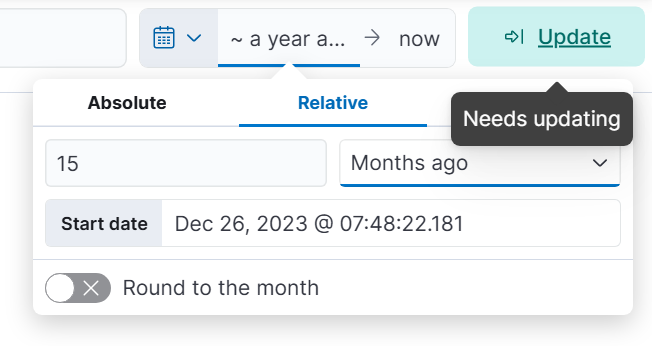

로그가 찍힌 날짜를 포함해야 하니 기간을 넉넉하게 잡고

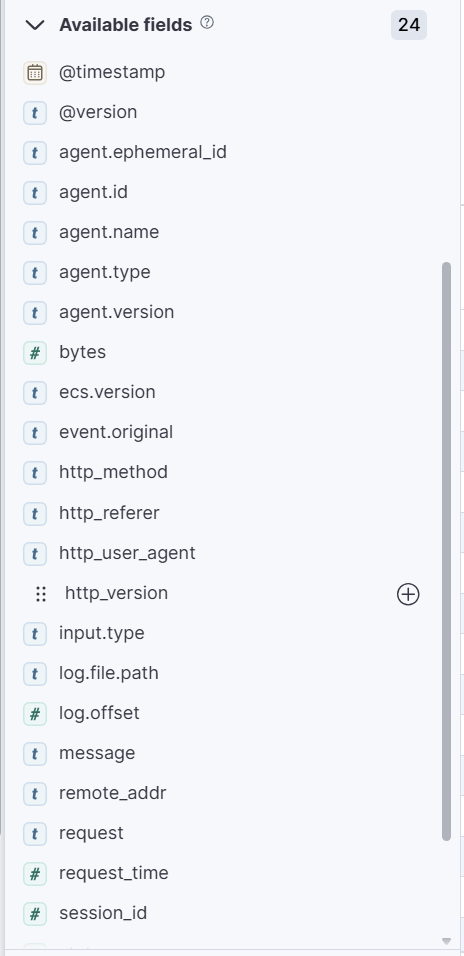

파싱이 제대로 되었다면 Custom fields들이 좌측에 있을 것이다.

+ 버튼 눌러서 추가해주면 된다.

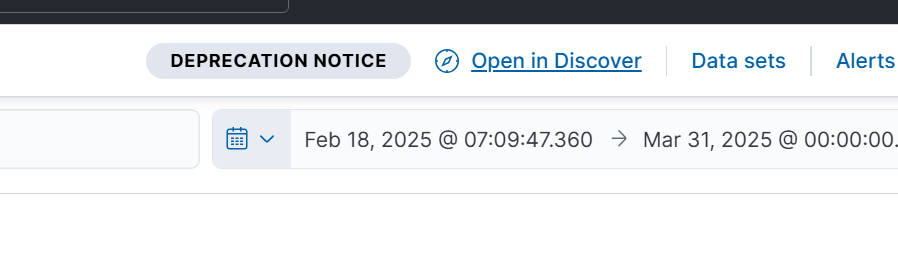

Open in Discover or Analytics > Discover

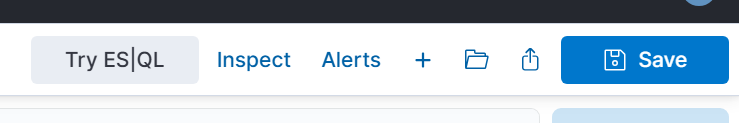

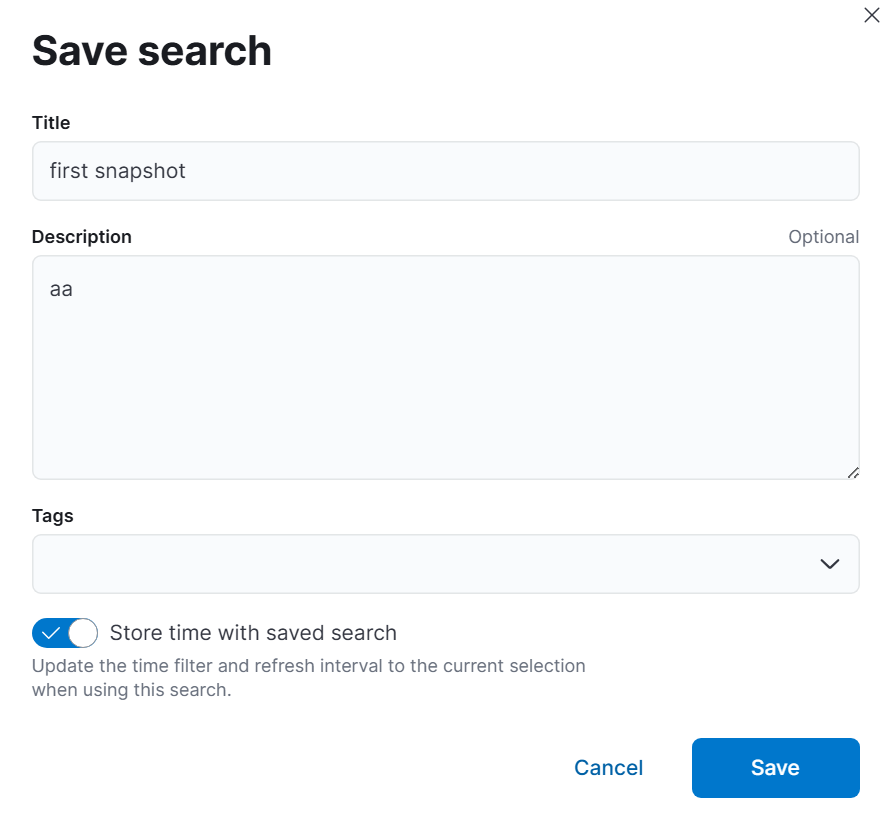

원하는 필드 추가해주고 우측 상단에 Save

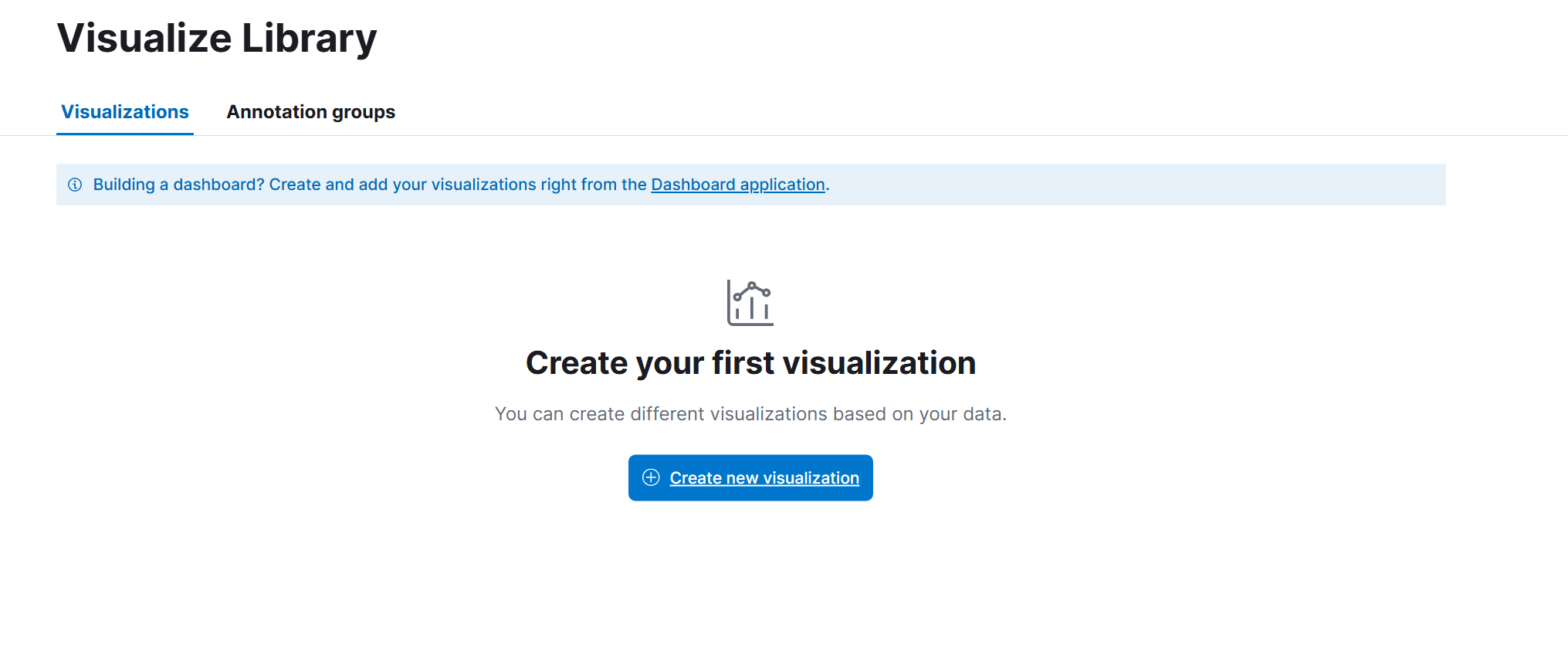

Analytics > Visualize Library

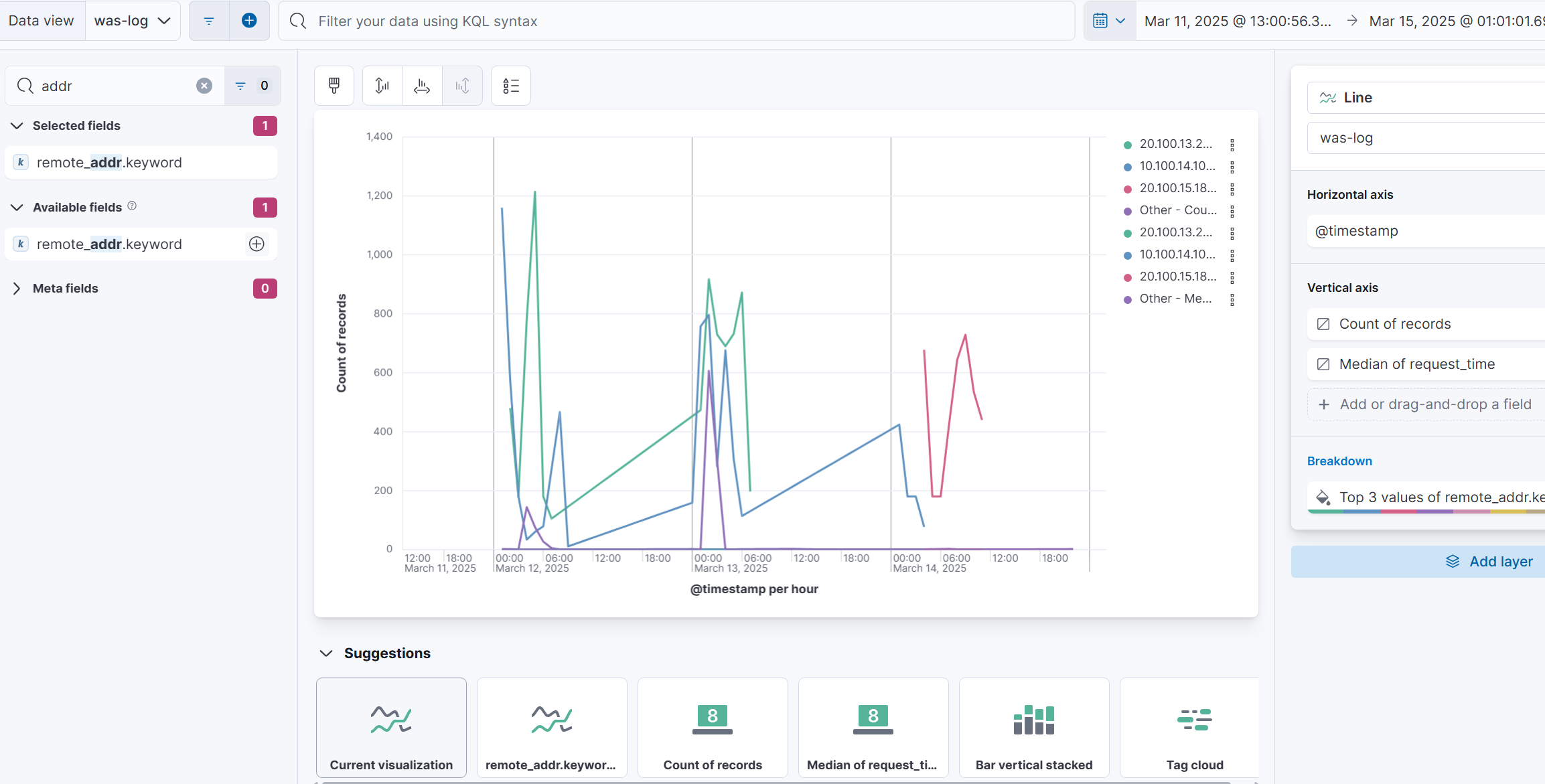

Lens



여기에서 입맛대로 그래프를 그리면 된다.
